Linux Device Driver for a Motor Encoder

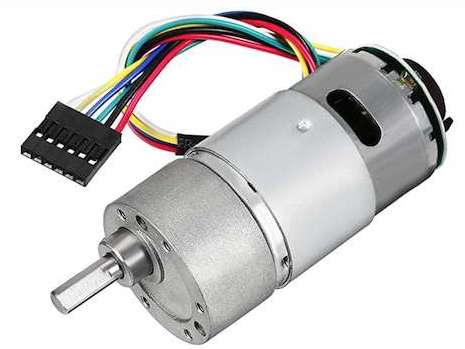

Uxcell gear motor with encoder
A rotary encoder is an electro-mechanical device that senses rotation of a motor shaft and converts it into a digital signal that can be processed by a computer.

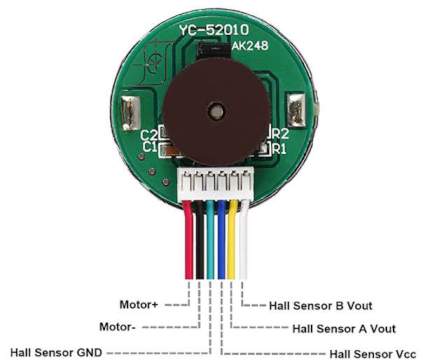

Encoder on the end of the motor shaft
For my robot project, I used two Uxcell gear motors with Hall effect encoders. I bought the motors from Amazon. The encoders have 16 magnets and two hall effect sensors. The magnets produce a rising and falling signal as they pass each sensor. So there are 64 encoder interrupts per revolution of the motor. The motors have a 30:1 gear ratio, so there are 64*30 = 1920 pulses for each revolution of the gearbox shaft. That is plenty of resolution to navigate the robot.
Incremental directional encoder

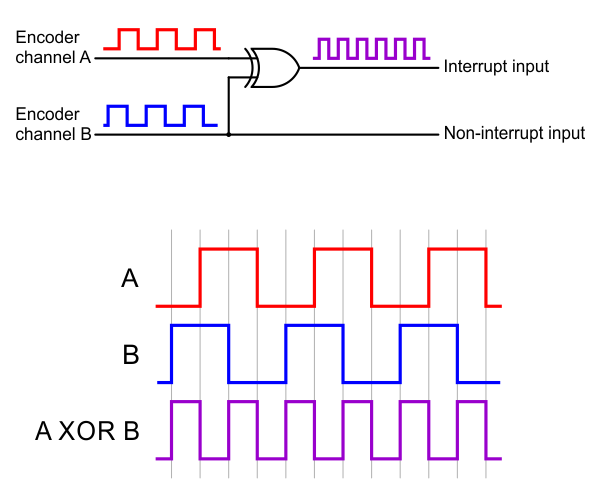

Encoder signals

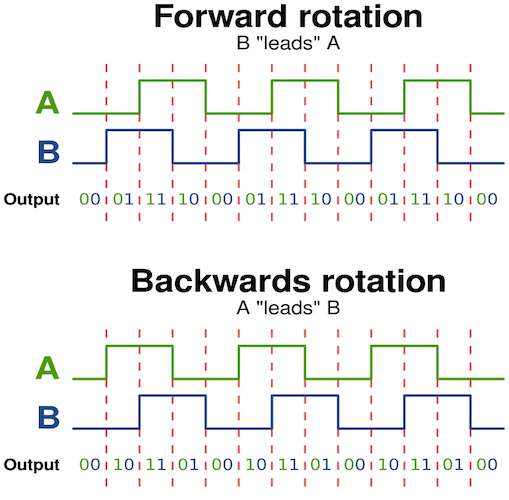

Forward and backwards rotations
The sequence of interrupts tells us both the speed of the motor and the direction it is turning. The rotary position (Position), the rate it is changing (Derivative), and the accumulated error (Integral) can be used in a Position-Derivative-Integral PID feedback control loop. The feedback is used to control the PWM signal to the motors.
Reading the encoder interrupts is done in the Linux kernel on the Raspberry Pi. The device driver receives an interrupt for each encoder tick and increments or decrements the count in a data structure. The data is mapped to the address of an application using mmap().
The source code for the device driver is listed below.
//
// encoderDriver.c
//
// Encoder device driver for Farmbot.
//
#include <linux/module.h>
#include <linux/interrupt.h>
#include <linux/gpio.h>
#include <linux/mm.h>
#include "encoderDriver.h"
//====================================================================
_Static_assert((PAGE_SIZE == 4096), "PAGE_SIZE == 4096");
#define RPI4_PERI_BASE 0xfe000000
#define GPIO_BASE (RPI4_PERI_BASE + 0x200000)
#define GPIO_SIZE (1024 * 4)
#define GPIO_21 21
#define GPIO_22 22
#define GPIO_23 23
#define GPIO_24 24
#define GPIO_25 25
#define GX(x) ((x) / 4)
#define GPFSEL0 GX(0x00)
#define GPFSEL1 GX(0x04)
#define GPFSEL2 GX(0x08)
#define GPSET0 GX(0x1c)
#define GPCLR0 GX(0x28)
#define GPLEV0 GX(0x34)
#define GPEDS0 GX(0x40)
static const char DeviceName[] = DEVICE_NAME;
static struct {
struct page *pagePtr;
volatile EncoderInfo *ep;
volatile UInt32 *gpioRegPtr;
int device_file_major_number;
int irqNum22;
int irqNum23;
int irqNum24;
int irqNum25;
} g;
static irqreturn_t
irqA(int x)
{
UInt32 pins = g.gpioRegPtr[GPLEV0];
UInt8 d = 1 & ((pins >> 22) ^ (pins >> 23));
g.ep->encoderCountA += (d ? -x : x);
//printk(KERN_NOTICE "IrqA pins=%08x, x=%d, d=%d, cnt=%d\n", pins, x, d, g.ep->encoderCountA);
return IRQ_HANDLED;
}
static irqreturn_t
irqB(int x)
{
UInt32 pins = g.gpioRegPtr[GPLEV0];
UInt8 d = 1 & ((pins >> 24) ^ (pins >> 25));
g.ep->encoderCountB += (d ? -x : x);
//printk(KERN_NOTICE "IrqB pins=%08x, x=%d, d=%d, cnt=%d\n", pins, x, d, g.ep->encoderCountB);
return IRQ_HANDLED;
}
static irqreturn_t gpio_22_irq(int irq, void *dev_id) { return irqA(1); }
static irqreturn_t gpio_23_irq(int irq, void *dev_id) { return irqA(-1); }
static irqreturn_t gpio_24_irq(int irq, void *dev_id) { return irqB(1); }
static irqreturn_t gpio_25_irq(int irq, void *dev_id) { return irqB(-1); }
//====================================================================
static ssize_t
encoder_mmap(struct file *file_ptr,
struct vm_area_struct *vma)
{
int len = vma->vm_end - vma->vm_start;
int prot = vma->vm_page_prot;
UInt32 pfn = page_to_pfn(g.pagePtr);
if (len != PAGE_SIZE) {
printk(KERN_NOTICE "encoder_mmap: Size must be %d.\n", (int) PAGE_SIZE);
return -EIO;
}
if (remap_pfn_range(vma, vma->vm_start, pfn, PAGE_SIZE, prot)) {
return -EAGAIN;
}
return 0;
}
int
encoder_open(struct inode *inode, struct file *file_ptr)
{
memset((void *) g.ep, 0, PAGE_SIZE);
printk(KERN_NOTICE "encoder_open, version=%d\n", ENCODER_VERSION);
g.ep->magic = ENCODER_MAGIC;
g.ep->version = ENCODER_VERSION;
return 0;
}
//====================================================================
static const struct
file_operations encoder_driver_fops = {
.owner = THIS_MODULE,
//.read = encoder_read,
.open = encoder_open,
.mmap = encoder_mmap
};
//====================================================================
static int
register_device(void)
{
int result = 0;
printk(KERN_NOTICE "%s: register_device() is called.\n", DeviceName);
result = register_chrdev( 0, DeviceName, &encoder_driver_fops );
if (result < 0 ) {
printk(KERN_WARNING "%s: Can\'t register device, errorcode = %i\n",
DeviceName,
result);
return result;
}
g.device_file_major_number = result;
printk(KERN_NOTICE "%s: Reg char dev, major number = %i, minor numbers 0...255\n",
DeviceName,
g.device_file_major_number );
return 0;
}
//====================================================================
static void
unregister_device(void)
{
printk(KERN_NOTICE "%s: unregister_device() is called\n", DeviceName);
if(g.device_file_major_number != 0) {
unregister_chrdev(g.device_file_major_number, DeviceName);
}
}
//====================================================================
MODULE_DESCRIPTION(DEVICE_NAME);
MODULE_LICENSE("GPL");
MODULE_AUTHOR("Bob");
static int
pinInit(int pin, irqreturn_t (*gpio_irq)(int, void *))
{
int irqNum;
int rv;
if (! gpio_is_valid(pin)) {
printk(KERN_NOTICE "Encoder GPIO pin %d not valid\n", pin);
//encoderError(ERR_NOT_VALID, pin);
return 0;
}
if (gpio_request(pin, "Encoder pinInit()") < 0) {
printk(KERN_NOTICE "Encoder GPIO request denied, pin %d\n", pin);
//encoderError(ERR_GPIO_REQ_DENIED, pin);
return 0;
}
gpio_direction_input(pin);
irqNum = gpio_to_irq(pin);
rv = request_irq(irqNum,
(void *) gpio_irq,
IRQF_TRIGGER_RISING | IRQF_TRIGGER_FALLING,
DeviceName,
NULL);
if (rv != 0) {
printk(KERN_NOTICE "%s: request_irq(%d) failed (%d)\n", DeviceName, pin, rv);
//encoderError(ERR_IRQ_REQ_DENIED, pin);
return 0;
}
return irqNum;
}
static int
encoder_driver_init(void)
{
printk( KERN_NOTICE "%s: encoder_driver_init\n", DeviceName);
g.gpioRegPtr = (volatile UInt32 *) ioremap(GPIO_BASE, GPIO_SIZE);
if (g.gpioRegPtr == NULL) {
printk(KERN_NOTICE "%s: ioremap(GPIO_BASE) failed.\n", DeviceName);
return -1;
}
/*
if (turnOnPin21() != 0) {
return -EIO;
}
*/
g.pagePtr = alloc_page(GFP_KERNEL);
if (g.pagePtr == NULL) {
printk(KERN_NOTICE "%s: page alloc failed\n", DeviceName);
return -EIO;
}
if ((((UInt32) g.pagePtr) & 0xfff) != 0) {
printk(KERN_NOTICE "%s: g.pagePtr is not page aligned\n", DeviceName);
}
SetPageReserved(g.pagePtr); // Don't swap
g.ep = (EncoderInfo *) page_address(g.pagePtr); // Get the kernel virtual address
if ((((UInt32) g.ep) & 0xfff) != 0) {
printk( KERN_NOTICE "%s: g.ep is not page aligned\n", DeviceName);
}
memset((void *) g.ep, 0, PAGE_SIZE);
g.irqNum22 = pinInit(GPIO_22, gpio_22_irq);
g.irqNum23 = pinInit(GPIO_23, gpio_23_irq);
g.irqNum24 = pinInit(GPIO_24, gpio_24_irq);
g.irqNum25 = pinInit(GPIO_25, gpio_25_irq);
return register_device();
}
static void
encoder_driver_exit(void)
{
printk( KERN_NOTICE "%s: encoder_driver_exit\n", DeviceName);
free_irq(g.irqNum22, NULL);
free_irq(g.irqNum23, NULL);
free_irq(g.irqNum24, NULL);
free_irq(g.irqNum25, NULL);
gpio_free(GPIO_22);
gpio_free(GPIO_23);
gpio_free(GPIO_24);
gpio_free(GPIO_25);
ClearPageReserved(g.pagePtr);
put_page(g.pagePtr);
iounmap(g.gpioRegPtr);
unregister_device();
}
module_init(encoder_driver_init);
module_exit(encoder_driver_exit);
//====================================================================
This is the user program for reading the encoder counts.
//
// encoderTestMmap.c
//
// Test program for encoder device driver
//
#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <string.h>
#include <locale.h>
#include <errno.h>
#include <fcntl.h>
#include <unistd.h>
#include <sys/mman.h>
#include "encoderDriver.h"
//====================================================================
//static const char device_name[] = "/dev/encoderDriver";
static const char device_name[] = "/dev/encoder";
struct {
EncoderInfo *ep;
int fd;
} g;
static void
openEncoderDevice(void)
{
if ((g.fd = open(device_name, O_RDONLY)) < 0) {
fprintf(stderr, "Cannot open {%s}: %s\n", device_name, strerror(errno));
exit(1);
}
}
static void
mmapEncoderDevice(void)
{
g.ep = mmap(0, 4096, PROT_READ, MAP_SHARED, g.fd, 0);
if (g.ep == MAP_FAILED) {
fprintf(stderr, "mmap failed for %s: %s\n", device_name, strerror(errno));
exit(1);
}
}
static void
printEncoderInfo(void)
{
static int lastA;
static int lastB;
if ((g.ep->encoderCountA == lastA) &&
(g.ep->encoderCountB == lastB)) {
return;
}
char buf[64];
sprintf(buf, "%d %d\n",
g.ep->encoderCountA,
g.ep->encoderCountB);
write(1, buf, strlen(buf));
lastA = g.ep->encoderCountA;
lastB = g.ep->encoderCountB;
}
int
main(void)
{
setlocale(LC_ALL, "");
openEncoderDevice();
mmapEncoderDevice();
fprintf(stderr, "Magic=0x%08x\n", g.ep->magic);
fprintf(stderr, "Version=%d\n", g.ep->version);
for (int i = 0; i < 1000000; ++i) {
printEncoderInfo();
usleep(100000);
}
munmap(g.ep, 4096);
close(g.fd);
return 0;
}
This is the Makefile for compiling the source code listed above.
#
# Makefile
#
obj-m += encoderDriver.o
KDIR = /lib/modules/$(shell uname -r)/build
CFLAGS := -O3
CFLAGS += -Wall -Wextra -Werror
TGTS := encoderTestMmap
TGTS += encoderDriver.ko
HDRS := encoderDriver.h
TMP := modules.order
TMP += Modules.symvers
all: ${TGTS}
encoderDriver.ko: encoderDriver.c ${HDRS}
make -C $(KDIR) M=$(shell pwd) modules
encoderTestMmap: encoderTestMmap.c ${HDRS}
gcc ${CFLAGS} $< -o $@
encoderTest: encoderTest.c ${HDRS}
gcc ${CFLAGS} $< -o $@
clean:
rm -f *~ ${TGTS} encoderDriver.mod* ${TMP}
make -C $(KDIR) M=$(shell pwd) clean
This is a Python script for the GUI to display the encoder counts in the video.
#!/usr/bin/env python3
from sys import stdin
from select import select
from signal import signal, SIGINT, SIG_DFL
from PyQt5.QtCore import QTimer
from PyQt5.QtWidgets import QWidget, QApplication, QMainWindow
from PyQt5.QtWidgets import QGridLayout, QLabel
## QGridLayout
## from PyQt5.QtWidgets import QTabWidget, QPushButton, QFrame, QLabel
## from PyQt5.QtWidgets import QTableWidget, QTableWidgetItem
class Globals:
def __init__(self):
self.app = None
self.mainWindow = None
self.centralWidget = None
self.tabWidget = None
self.timer = None
self.ma = None
self.mb = None
g = Globals()
styleSheet = """
QWidget {
background-color:#e0e0ff;
}
QLabel {
qproperty-alignment: AlignRight;
font-size:48px;
max-height:60px;
border:1px solid black;
border-radius:5px;
}
QLabel.mmm { background-color:#ffc0c0;}
QLabel.vvv { background-color:#c0ffc0;}
"""
def timerTick():
while select([stdin,],[],[],0.0)[0]:
arr = stdin.readline().strip().split()
print("XX {%s} {%s}" % (arr[0], arr[1]))
if len(arr) < 2:
continue;
g.ma.setText(arr[0])
g.mb.setText(arr[1])
def setupMainWindow():
g.app = QApplication([])
signal(SIGINT, SIG_DFL) ## Make Ctrl-C work
g.mainWindow = QMainWindow()
g.mainWindow.setWindowTitle("Encoder Test")
g.mainWindow.setGeometry(1500, 800, 400, 400)
g.centralWidget = QWidget()
## g.centralWidget.setStyleSheet(styleSheet)
g.mainWindow.setCentralWidget(g.centralWidget)
grid = QGridLayout()
g.centralWidget.setLayout(grid)
def mkLabel(x, y, cls, txt):
lbl = QLabel(txt)
lbl.setProperty("class", cls)
grid.addWidget(lbl, x, y)
return lbl
m00 = mkLabel(0, 0, "mmm", "Motor A:")
g.ma = mkLabel(0, 1, "vvv", "0")
m01 = mkLabel(1, 0, "mmm", "Motor B:")
g.mb = mkLabel(1, 1, "vvv", "0")
g.mainWindow.setStyleSheet(styleSheet)
g.mainWindow.show()
def setupTimer():
g.timer = QTimer()
g.timer.setInterval(100)
g.timer.timeout.connect(timerTick)
g.timer.start()
def main():
setupMainWindow()
setupTimer()
g.app.exec_()
main()
Testing the encoder driver.
